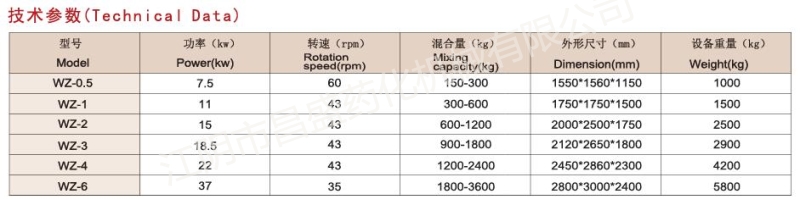

  • 技术参数
  • 产品配置表

概述:

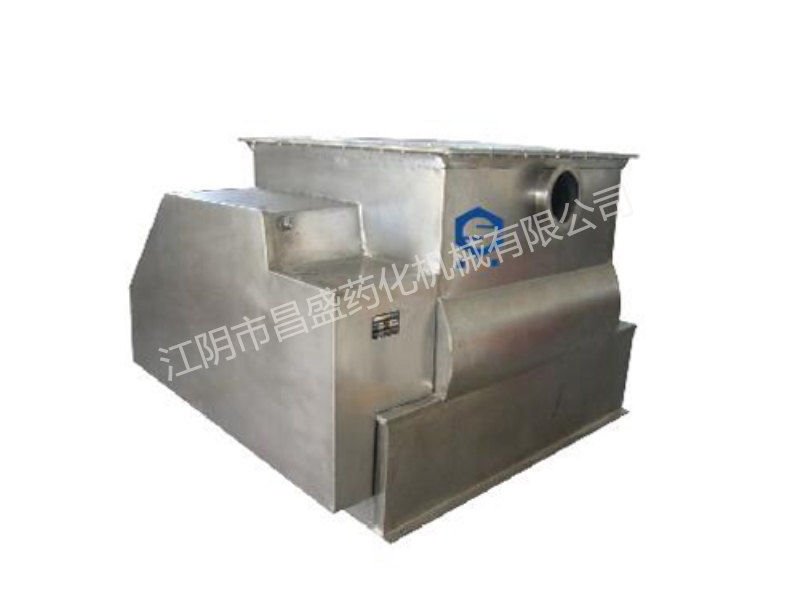

无重力混合机是一款高均匀度、高强度、低能耗、低污染的先进混合设备。该产品能进行粉体与粉体、粉体与颗粒的混合,特别是搅拌比重或粒径相差悬殊的物料有较好混合效果。此设备应用领域广阔,在制药、食品、饲料、化肥、农药、砂浆等领域得到广泛应用。

Introduction:

Without gravity mixing machine is advanced mixing equipment of a high efficiency, high uniformity, high strength, low energy consumption, low pollution. The product can make powder and powder, powder and Particle mixing, especially the mixing proportion or particle size difference between the material has good mixing effect. This device has wide application range, in the pharmaceutical, food, feed, chemical fertilizer,Widely used pesticides, mortar and other fields.

原理:

无重力混合机由传动部分、浆叶式搅拌器、孪生U形桶体组成。传动部分为减速器通过多排链条或齿轮传动带动搅拌器运转。搅拌器为双轴桨叶,轴上特殊角度布置的桨叶等速反向旋转,确保物料径向、环向、轴向三向抛洒运动,形成交叉循环、剪切掺混等多重效果,在极短的时间内达到均匀混合。掺混等多重效果,在极短的时间内达到均匀混合

Principle:

Without gravity mixing machine is composed of a transmission part, the blade type stirrer, twin U shaped barrel body composition. The transmission part for the reducer through multiple rows of chain or gear transmission to drive the agitator operation. Stirrer for twin shaft paddle, shaft angle blade special arrangement of constant velocity reverse rotation, to ensure that the material radial, circumferential and axial three to throw movement, formed cross circulation and shearThe mixing of multiple effects, to achieve uniform mixing in a very short period of time.


江阴昌盛药化机械有限公司(江阴市昌盛制药机械厂),位于江阴市文林镇,东连上海、南临苏州、无锡,地处“黄金通道”之称的沪宁高速公路无锡东。本公司主营干燥机,混合机,制粒机,粉碎机等药化设备。本公司有三十年的机械制造历史、技术力量雄厚、工艺先进、设备齐全、由于生产及市场需要,本公司聘请了制药、化工、食品机械方面的多名专家及工程技术人员,发展了一系列的制药及化工机械设备,主要产品有中药粉碎机、筛粉机、混合机、制粒机、干燥机等多种系列产品,为我国的制药及化工、食品等行业的机械装备更新换代作出了一定的贡献!产品质量得到广大用户的一致好评。
